It has the following features:
Hardware:

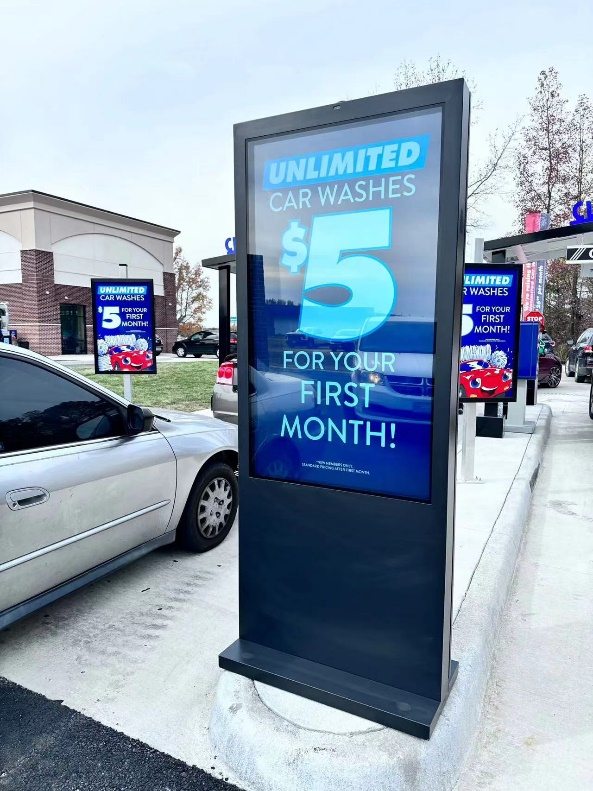

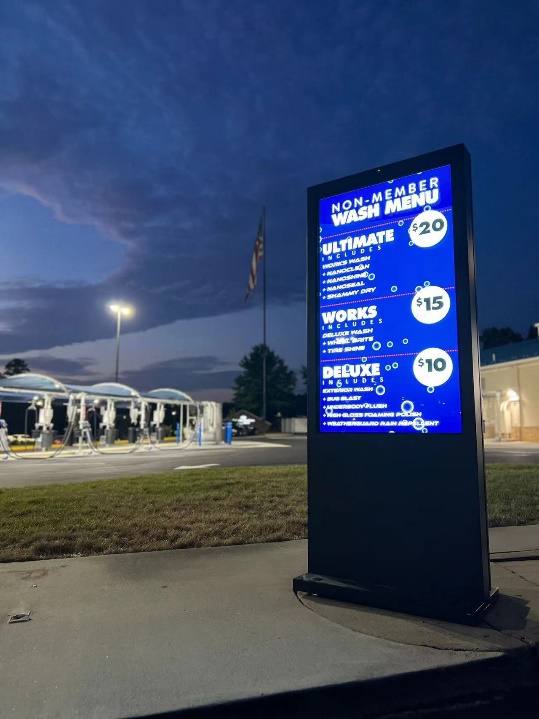

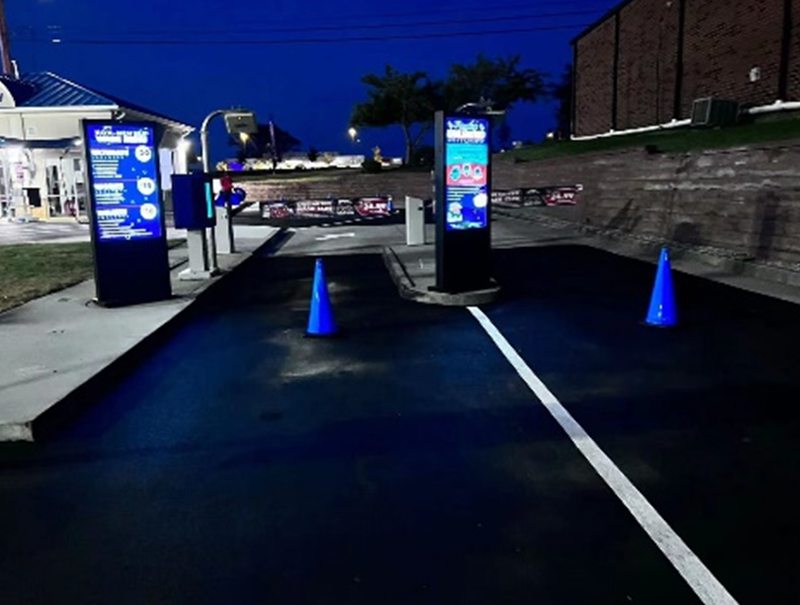

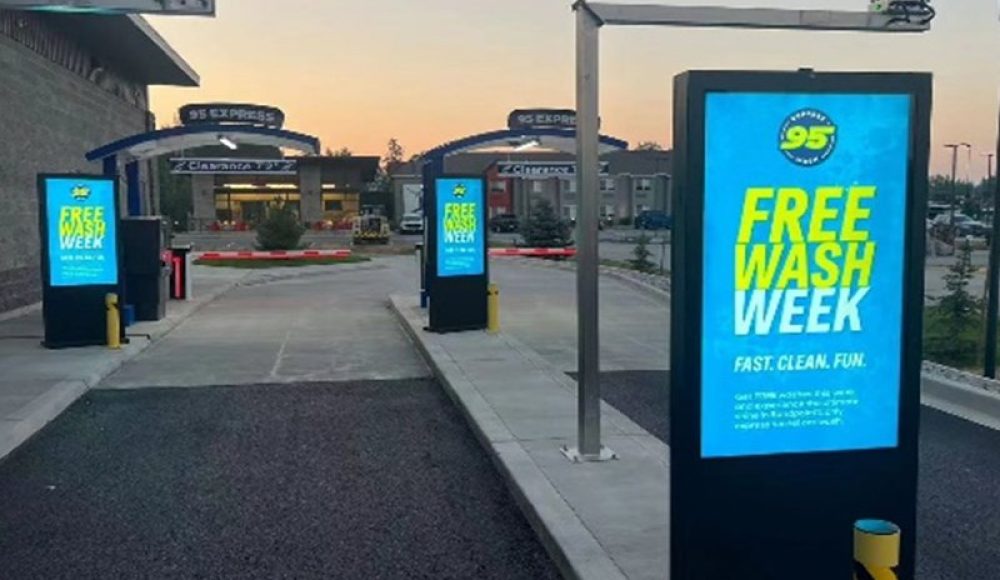

The 55-inch screen provides a large display area and can attract more attention outdoors.
It uses an LCD display with high brightness to ensure clear display of content in various outdoor environments (including direct sunlight).
Operating system and performance:
It is equipped with an Android operating system with a cloud server solution, which has good software compatibility and scalability. The cloud server solution enables remote management and content updates, making it convenient for operators to centrally control and manage digital signage.
Equipped with RK3568 chip, RK3568 adopts 22nm process technology, equipped with a quad-core Cortex-A55 processor and Mali G522EE graphics processor, and runs smoothly. The chip also has a built-in independent NPU, which can be used for lightweight artificial intelligence applications. Its DDR particles have excellent compatibility and support multiple types of memory, such as LP4/LP4x/LP3/DDR4/DDR3, etc. The highest frequency is 1600MHz, and the maximum capacity supports 8GB DDR3 and DDR4’s 2 chip select mode. It has rich function expansion interfaces, supports PCIe3.0 1×2/2×1 lanes, PCie2.1 1×1 lane, and can meet the expansion needs of 4G/5G, WiFi6, multiple network ports, NPU, etc. It also supports 3xSATA3.0 to avoid the instability caused by expanding SATA through USB, and supports up to 4 USB ports (including 1xUSB3.0/USB2.0 host + 1xUSB3.0/USB2.0 otg + 1xUSB2.0 host + 1xUSB2.0 host).
It has 2GB RAM and 32GB ROM, which can meet the basic needs of system operation and digital signage software storage.
Software:
It comes with dedicated digital signage software, which can be used to easily create, edit and arrange the content to be displayed, such as advertisements, promotional information, service introductions, etc.
In addition, this type of outdoor digital signage usually has some other features to adapt to outdoor use environments:
Waterproof, dustproof and weatherproof design, which may reach a certain protection level (such as IP55 or higher) to protect the internal electronic components from the influence of bad weather.
Good heat dissipation design ensures stable operation in outdoor high or low temperature environments.
